84661370
Spec:Item Type: Radio TransceiverMaterial: ABSScreen: 3.2 inch TFT resistive touch screenTransmit Power: 5-15dBm (10MHz-2150MHz), 13-15dBm (2150-2750MHz), 0-5dBm (2750-4000MHz), -10-0dBm (4000-6000MHz)RF Bandwidth: 20MHzSampling Rate: 2Msps-20MspsPower Supply Transmission Interface: USB2.0 (external power supply)Received Power: -5dBm Clock Accuracy: 0.1-0.5ppWorking Frequency Range: 1MHz-6GHzDuplex Mode: Half duplex transceiverStorage Card: Shipped without storage cardMain Chip:Processor: LPC43xxARM Cortex M4Complex Programmable Logic Device: CPLD CoolRunner IIWireless RF Transceiver: MAX2837(2.3-2.7GHz transceiver)Mixer RFFC5072 (30MHz-6GHz)Application: Radio communication technology research, information security technology research, for ZigBee, WiFi, for LTE, for ADS B, for DVB, etc.Wireless Communication Physical Layer Security Protection: Key generation, identity authentication, anti interference, source, channel codec, modulation and demodulation, source mechanism based on RSSI wireless application system and CSI. Channel encoding and decoding, modulation and demodulation spread spectrum, channel simulationUpdate:SSTV (robot8, for martin m1 and m2, for Scottie s1 and s2, pd 120) receptionNOAA receptionImproved analog TV receiver (with AGC and line synchronization)Improved signal generator and soundboard (added AM support)Built in microphone Built in GPS receiver for position and time synchronizationBuilt in battery and battery indicatorBuilt in barometerBuilt in compasspacking list:1 x Radio Transceiver (Storage Card Not Included)1 x Antenna1 x Data Cable1 x Storage Bag

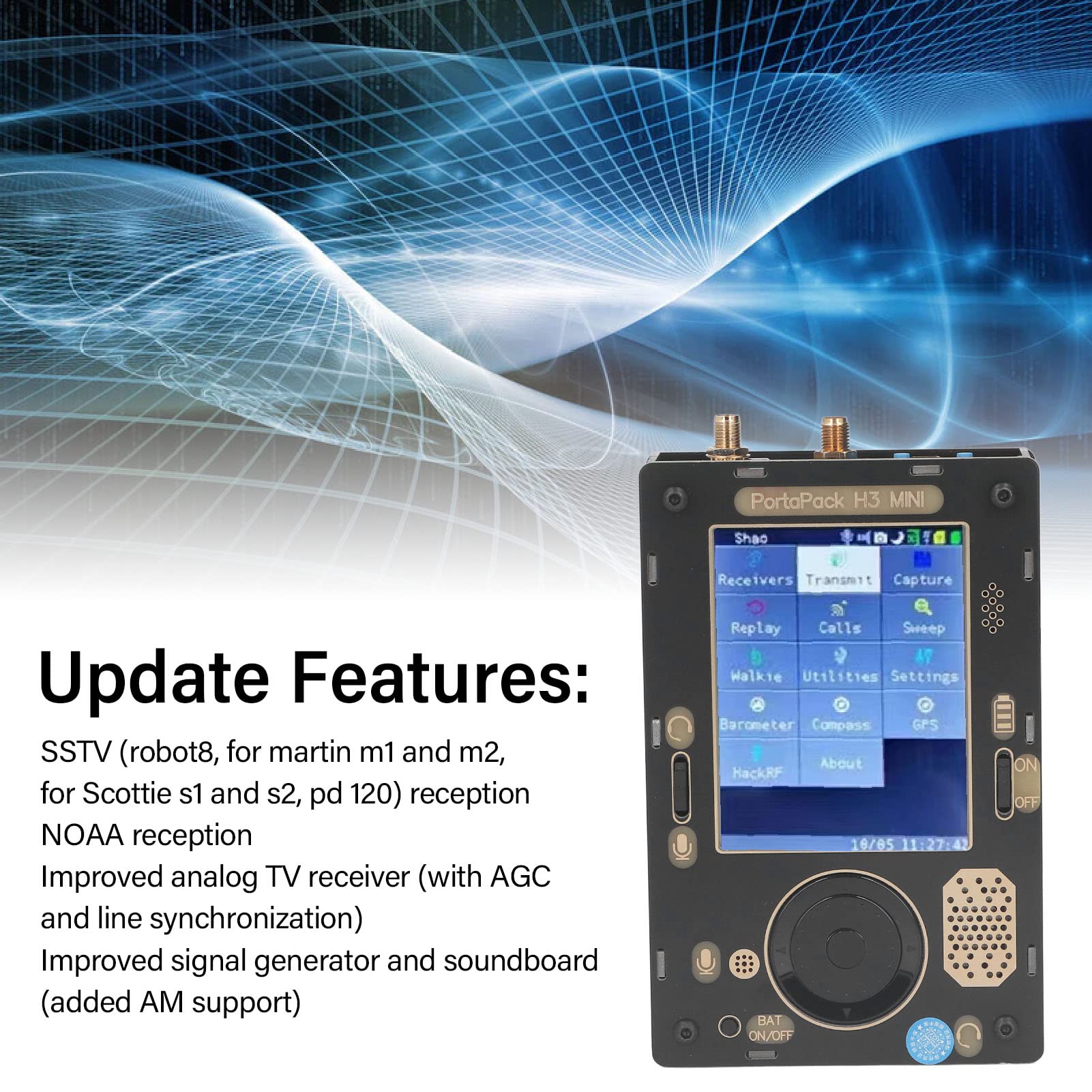

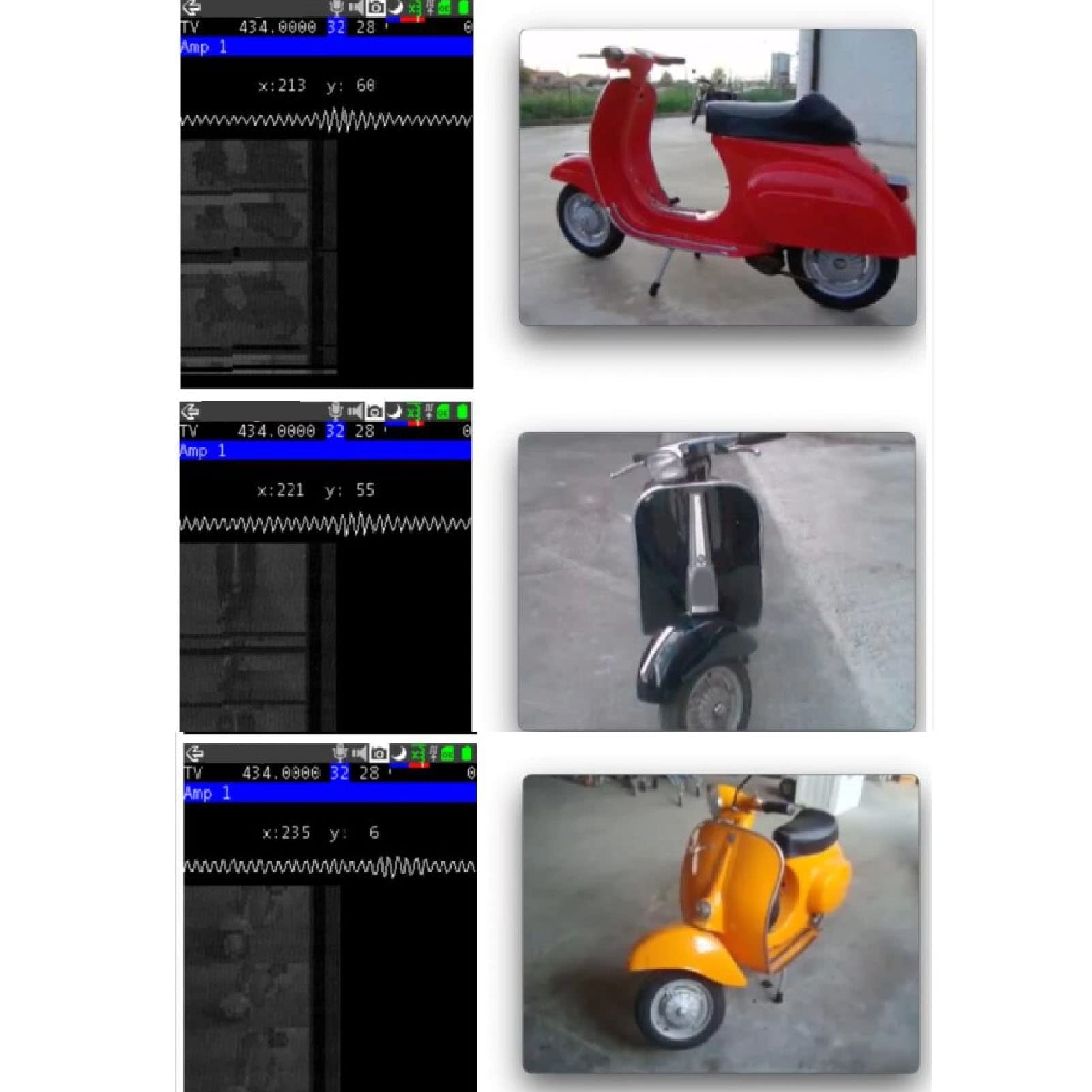

Update Features This SDR radio transceiver boasts a range of new features, including SSTV and NOAA reception, improved analog TV receiver (with AGC and line synchronization), improved signal generator, and sound board (with added AM support). These updates make it an even more powerful tool for a range of applications.

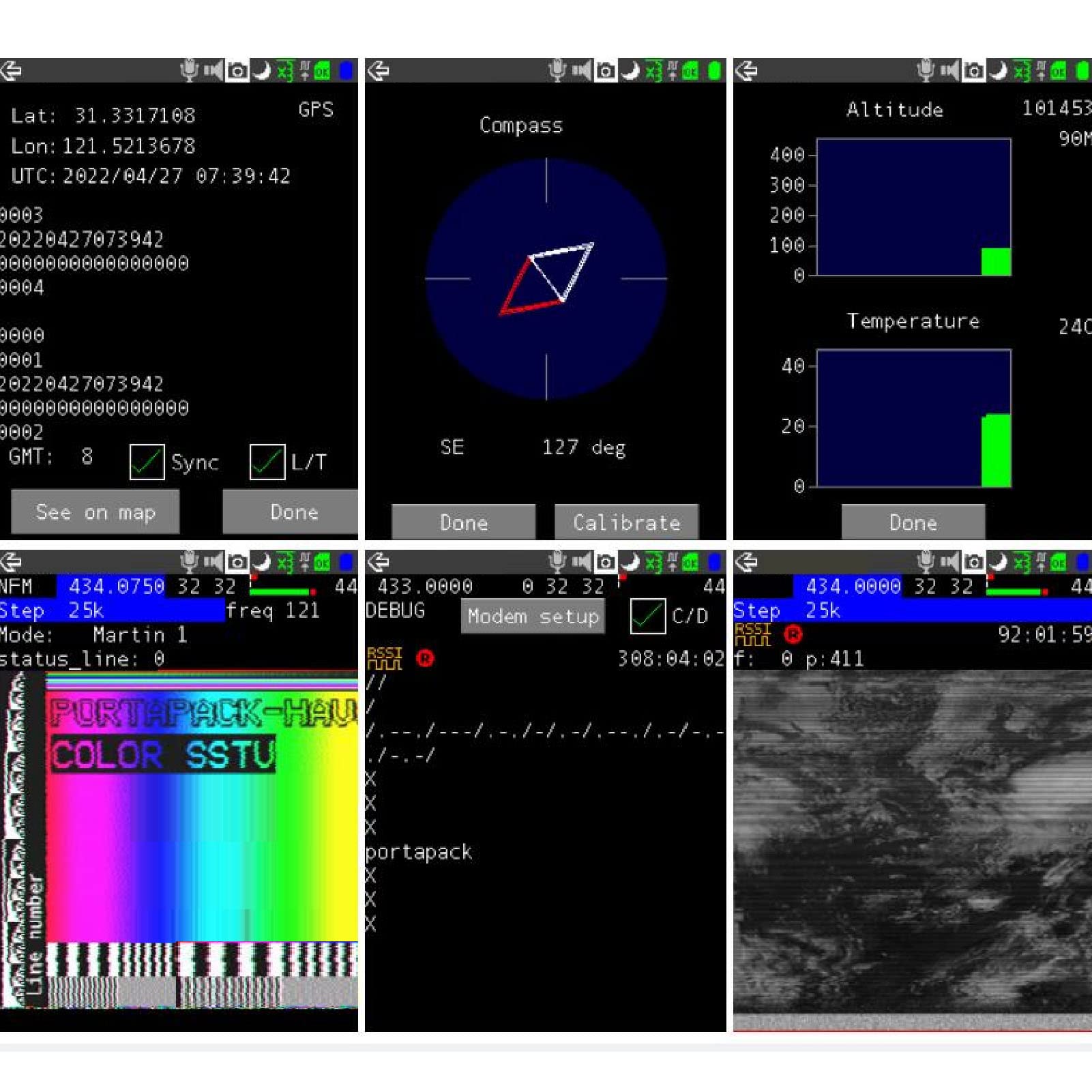

Multi-Function This portable radio transceiver is built with a microphone, GPS receiver (for position and time synchronization), battery and battery indicator, barometer, and compass. With all these features, this radio transceiver is highly practical and suitable for all kinds of outdoor adventures.
USB2.0 Interface The transceiver adopts a USB2.0 power supply and transmission interface, which requires an external battery. Any USB connected battery can work with the device to ensure efficient and reliable transmission.

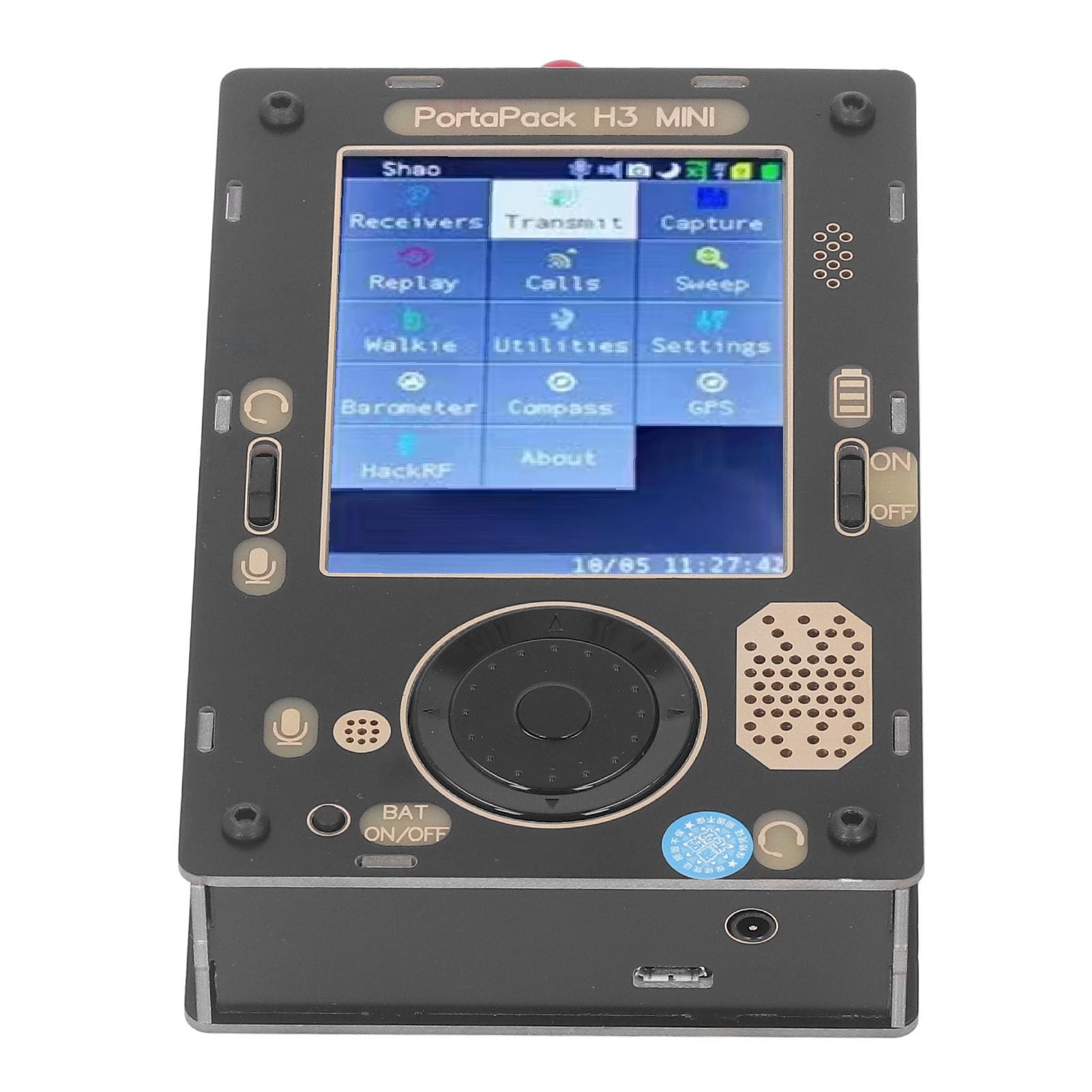

TFT Touch Screen The transceiver features a 3.2-inch TFT resistive touch screen, which makes operation smarter and more convenient. This touch screen ensures easy use and customization, allowing users to quickly and easily adjust settings as needed.
Wide Frequency Range This SDR radio transceiver has a wide working frequency range of 1MHz to 6GHz, making it applicable for a range of applications. This frequency range ensures that this transceiver can be used for a wide variety of communications, including amateur radio, air traffic control, emergency services, and more.
