Multi-Code 1099 12-24 Volt Universal Gate Radio Receiver - MCS109950 - Compatible with Linear Garage Door Openers - Ideal for Home Security and Automatic Gate Systems

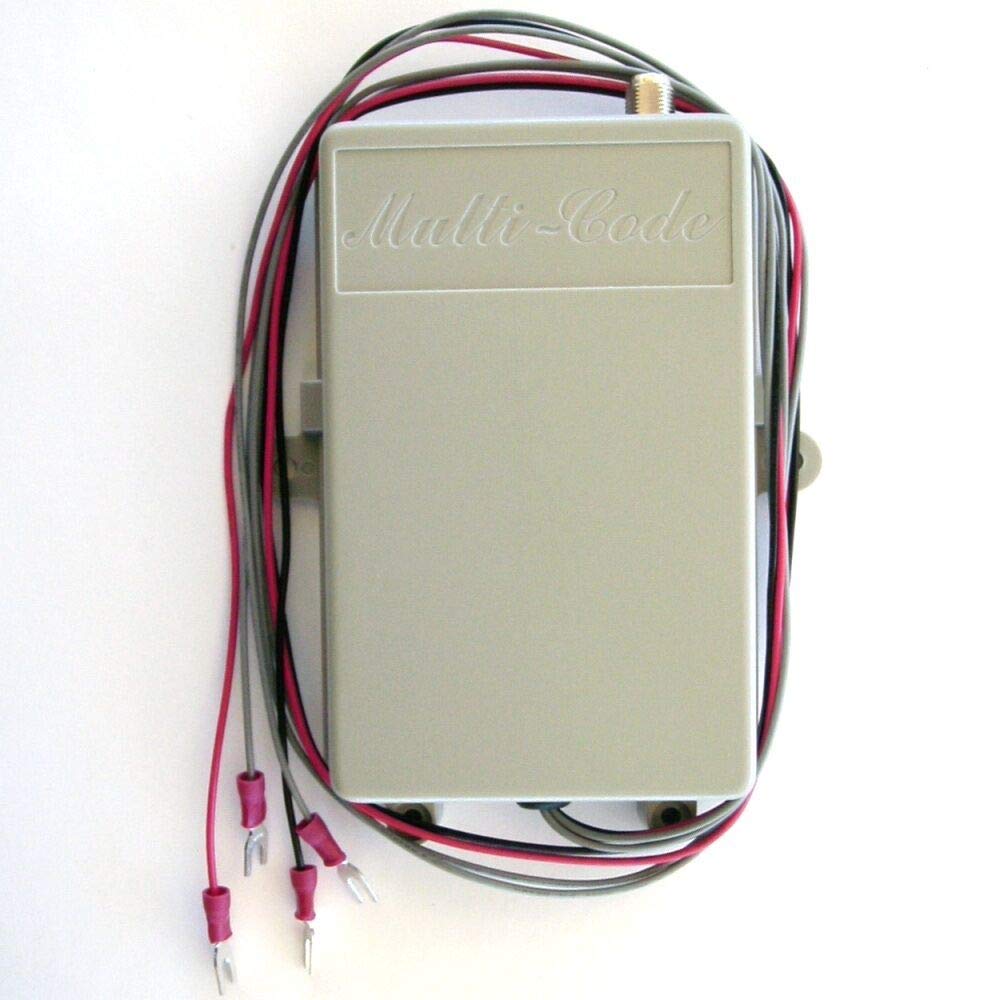

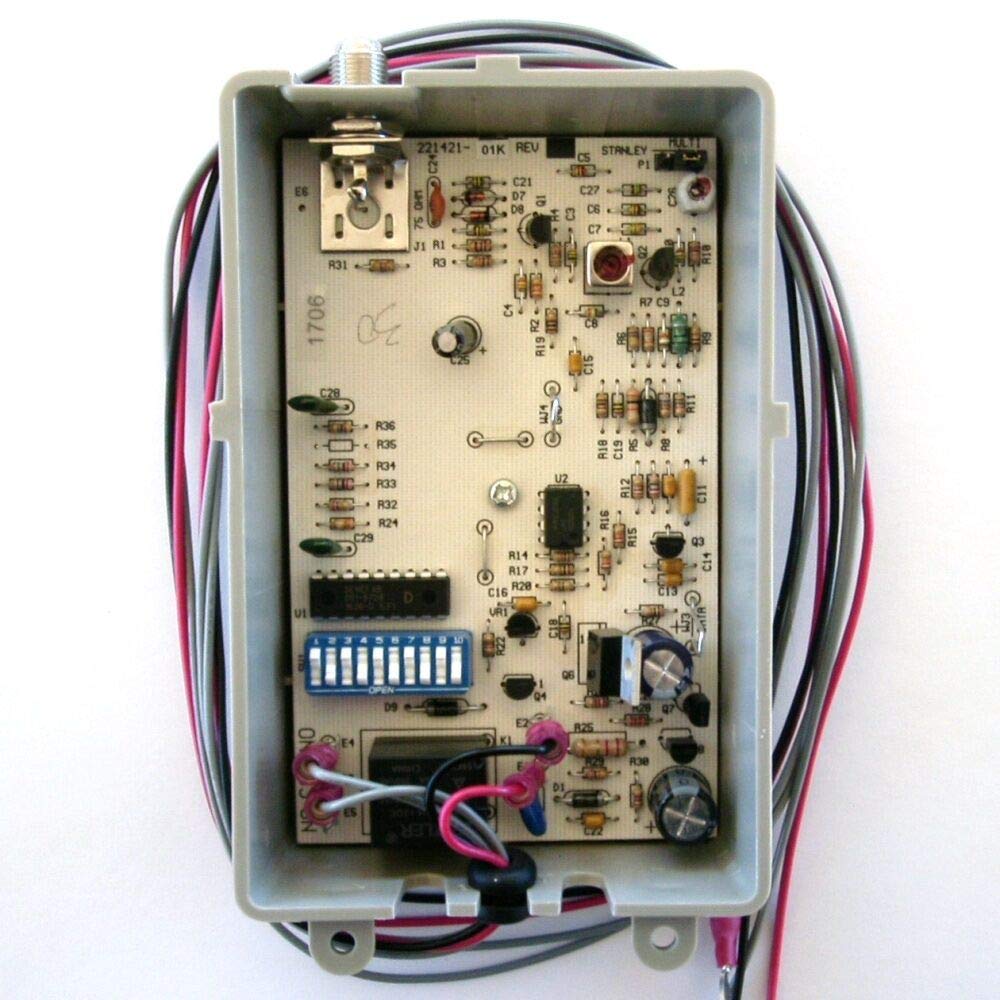

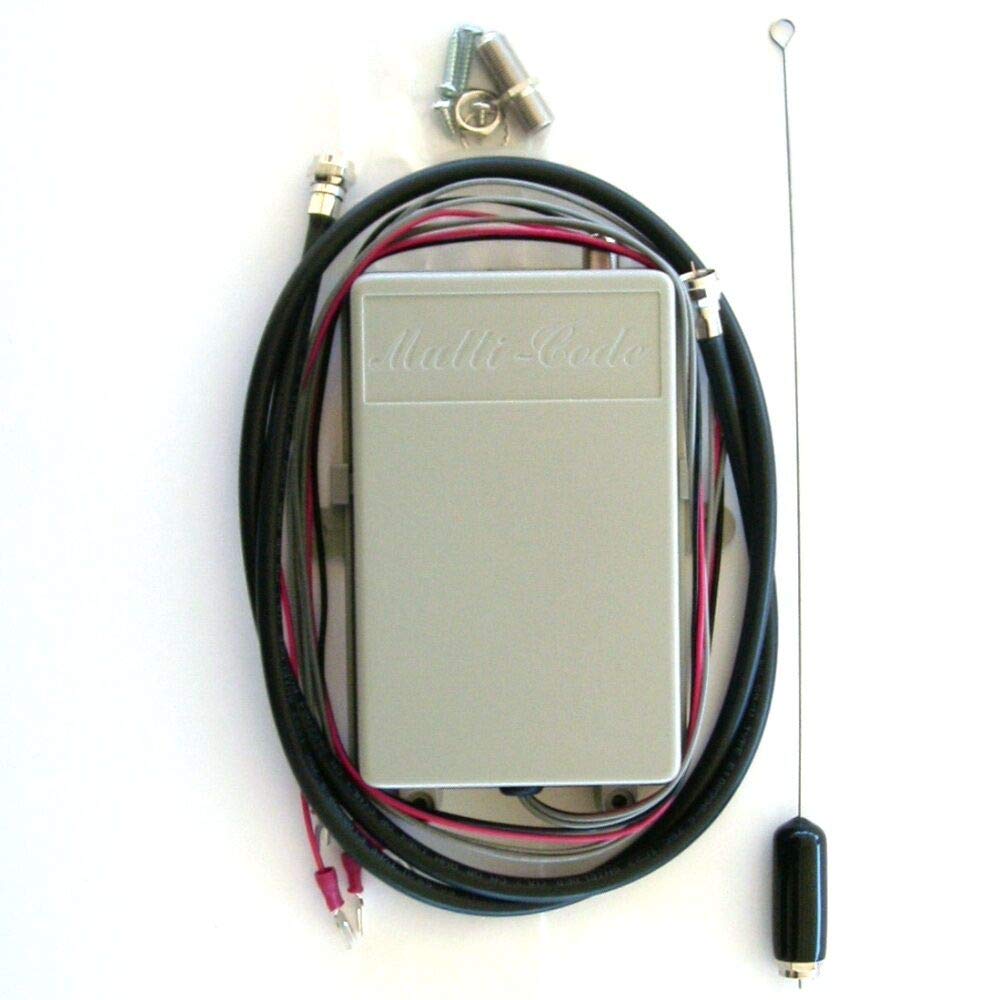

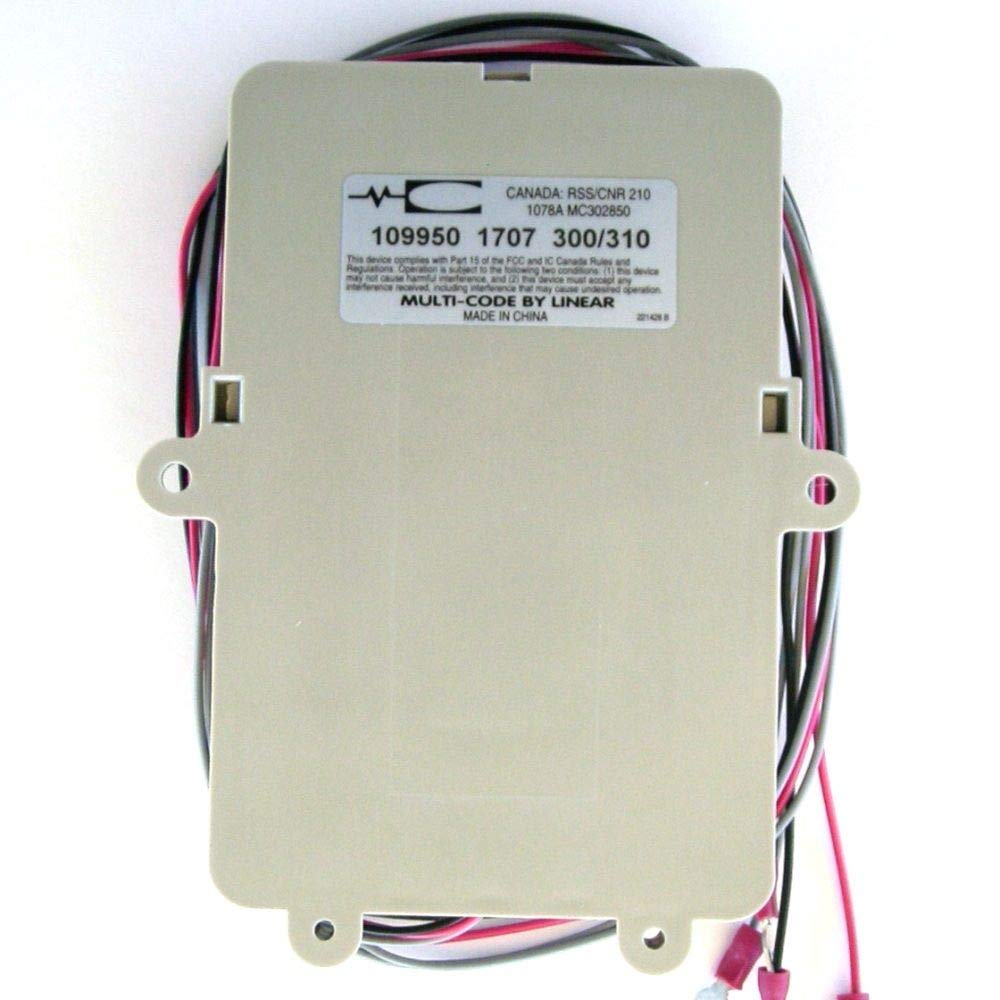

Multi-Code 1099 12 24-Volt Gate Radio Receiver MultiCode 109950 Linear MCS109950 This Multi-Code model 1099 also listed as the 109950 is a one channel, 12 or 24 volt, F-connector type antenna gate or garage door opener radio receiver that works with all Multi-Code and Stanley compatible remote controls that have 10 DIP type code switches on 300Mhz or 310Mhz. The MultiCode 109950 is manufactured by Linear Corporation part number MSC109950 that replaces several of the older models. This radio receiver features auto voltage sensing for 12 or 24 volt AC or DC systems and can work on Multi-Code 300MHz or Stanley 310MHz frequencies by changing an internal jumper. Having an F-connector type antenna allows for the antenna to be remotely located from the receiver using the optional Multi-Code 106603 remote antenna kit (sold separately) to obtain maximum receiver range especially if the receiver is located inside a metal enclosure that would block the remotes signal. Replaces Multi-Code 109930, 109940, Stanley 109931. PLEASE NOTE: This radio receiver is a Multi-Code brand name radio receiver and is not a universal type of radio receiver. The Multi-Code 109950 by Linear Corporation MCS109950 radio receiver is directly compatible with the following model remotes to control one device: Challenger: MC1010, MC1020, MC4210, MC4220. Carper: CX-300 Digi Code: 5010, 5060, 5030, 5040, 5070. Heddolf: M219, M220. Multi-Code: 1083, 3060, 3070, 3083, 3089, 4120, 4140. Multi Elmac: 3089. Chamberlain: 300MC. Not all compatible models may be listed Product Specifications: Power: 12-30 Volts AC or 10.5-30 Volts DC Frequency: 300MHz or 310 MHz jumper selectable Contacts: One N/O rated at 1 Amp 30 Volts Codes: 1,024 (set by 10 dip code switches) Dimensions: 5.5 x 1.5 x 3.625 inches
