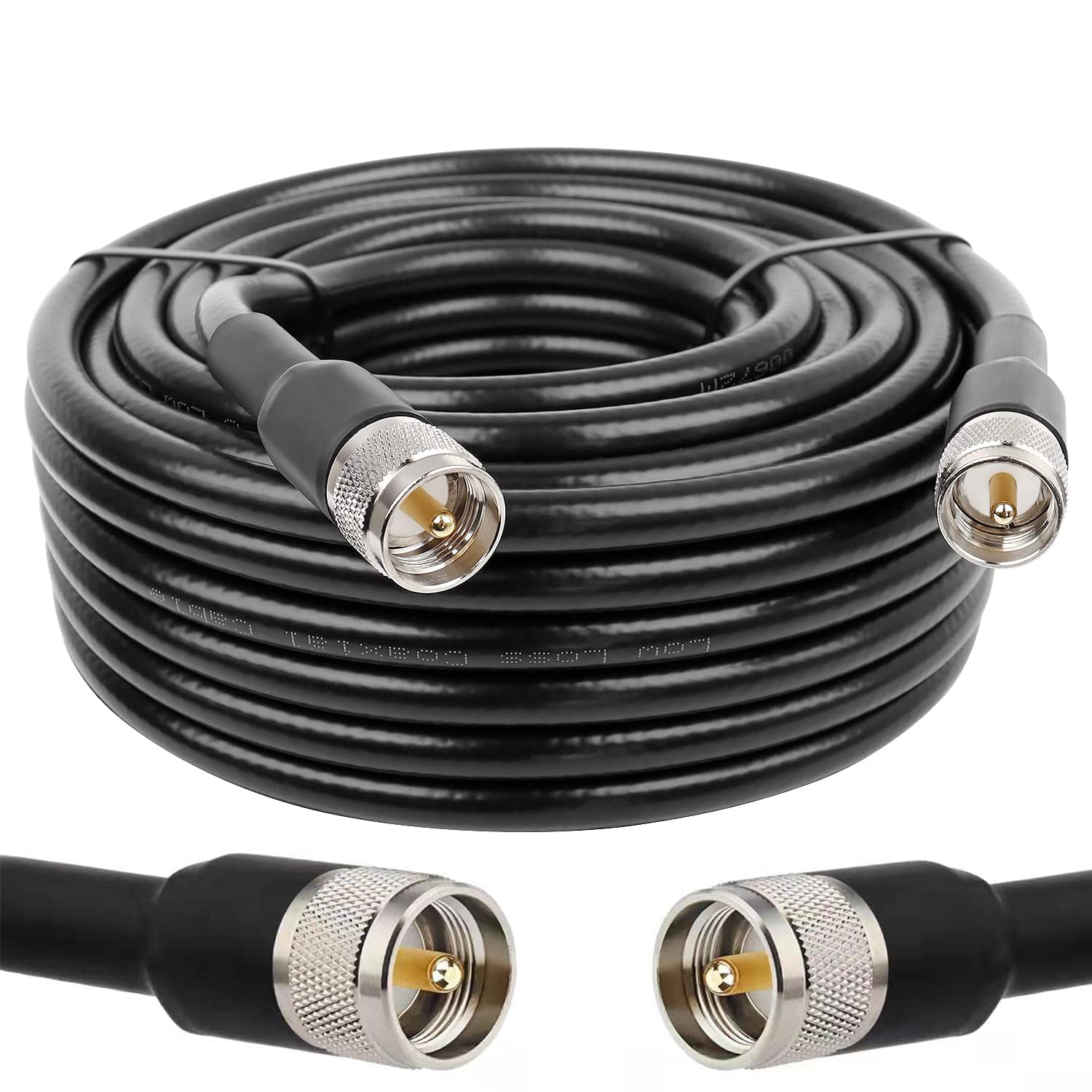

MOOKEERF RG8 PL-259 Male to PL-259 Male Low Loss Coax Cable High density tinned copper braided and the waterproof PVC jacket are designed to maintain 95% shield performance. It would made this UHF jumper cable is really low loss and maximum protect the signal during the transmission.This PL259 cable make professional connection between cable with solid connectors. The ends of both connectors are used clamp design. It would be screws snugly with your devices and the uhf connector would not fell apart.Used for antennas, antenna analyzer, dummy load, radio scanner, ham radio transceiver, SWR METER,CB Radio hand-held & amateur radio equipment. Package Included: 1 x75ft RG8 PL259 UHF Male to Male Coax Cable Specifications Cable Type RG8 Coax Cable Impedance 50 Ohm Connector Type UHF PL259 Male to UHF Male Frequency 0 - 1000MHz Min. Bend Radius(Install) 2in Maximum Tensile Strength 21.3Ib Operating Temp -55 to 150℃ Length 75ft RG58 UHF Male to Female Coax Cable RG58 UHF Male to Male Coax Cable RG58 UHF 90 Degree Male to Male Coax Cable RG8X UHF Male to Male Coax Cable Add to Cart Add to Cart Buying Options Add to Cart Customer Reviews 4.7 out of 5 stars 421 4.7 out of 5 stars 740 5.0 out of 5 stars 6 4.6 out of 5 stars 668 Price $9.99$9.99 $16.99$16.99 — no data $25.99$25.99 Cable Type RG58 RG58 RG58 RG8X Connector Type PL259 Male to Female PL259 Male to Male PL259 Male to Male PL259 Male to Male Impedance 50 Ohm 50 Ohm 50 Ohm 50 Ohm
[LOW LOSS] -The loss of 75ft RG8 pl259 coaxial cable at 450MHZ signal frequency is less than 2.15dB and the SWR ≤ 1.25. There is no need to worry about signal loss for long-distance high-frequency use.
[Well Built Structure] - The inner conductor of this pl259 cable is made of copper clad aluminium, and the outer conductor is made of Aluminum foil and tinned copper braid which could maximum protect the signal over large distance.It could be better in resist oxidation.

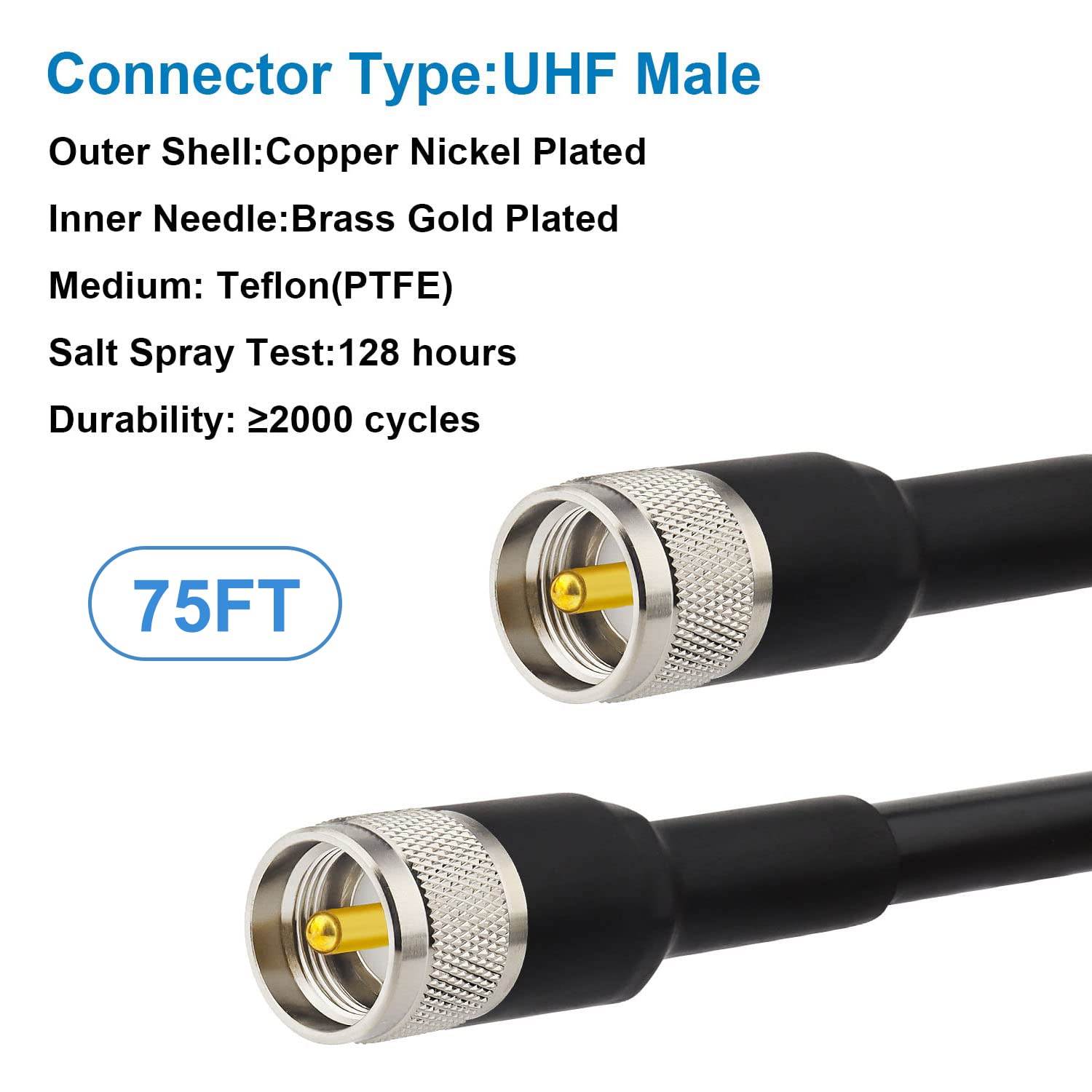

[Durable]- The jacket of this cb cable is made of PVC,which is waterproof and durable.The shell of the uhf connector is made of high-quality copper nickel plated,which could be better in resist oxidation and corrosion.It can work even in outdoor harsh environments.

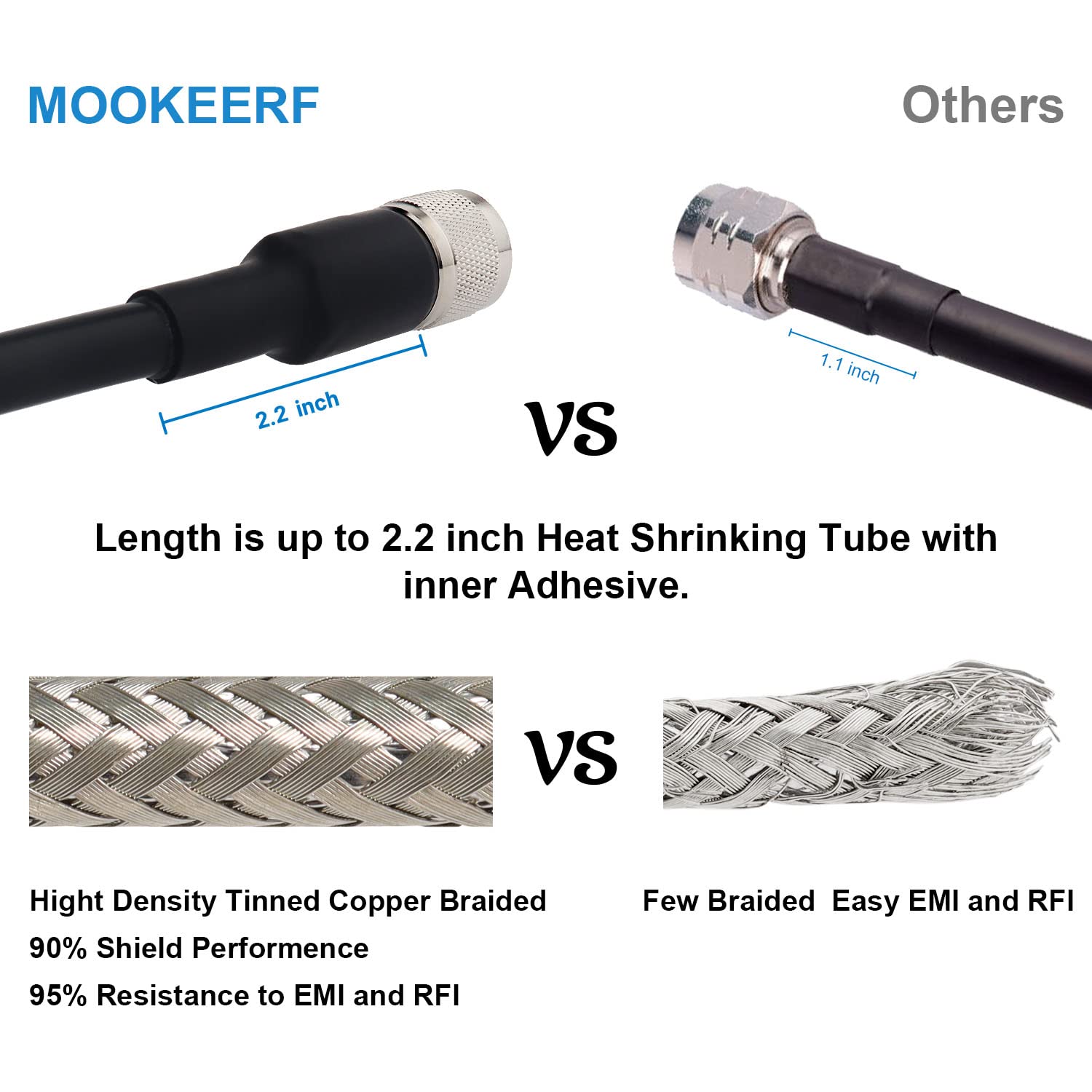

[Prevent Coming Off]- Connection between UHF male connector and RG8 coaxial cable end is equipped with a 2.2" heat shrink tube and built with adhesive. It is very heavy duty and connectors are well integrated into cable. They prevent the connector from being easily pulled out when in use.
[Applications] - This RG8 pl259 male to male coax cable could be used for CB ham radio, HF amateur radio, marine boat VHF radio, antenna, swr meter, surge protector, Walkie Talkies.
