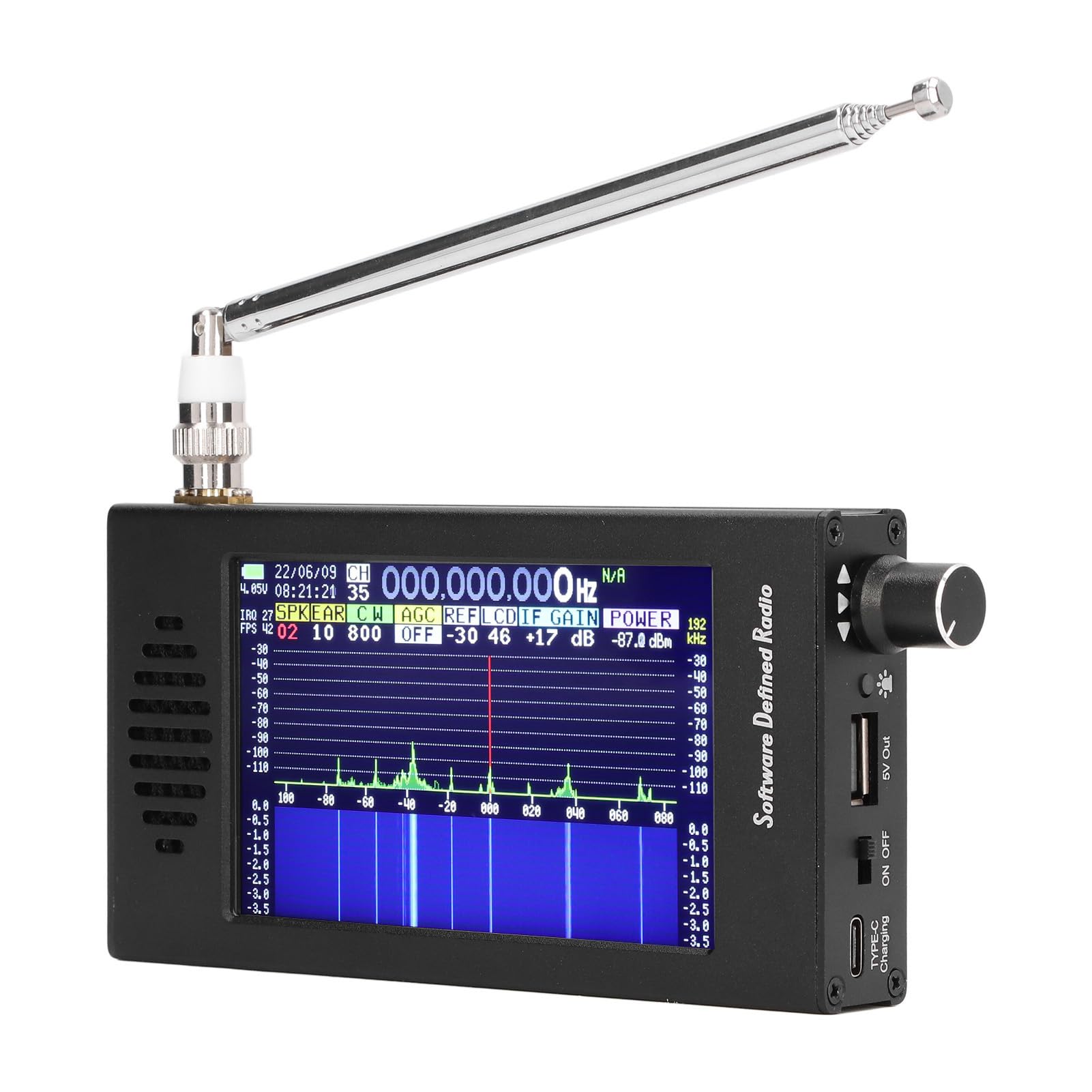

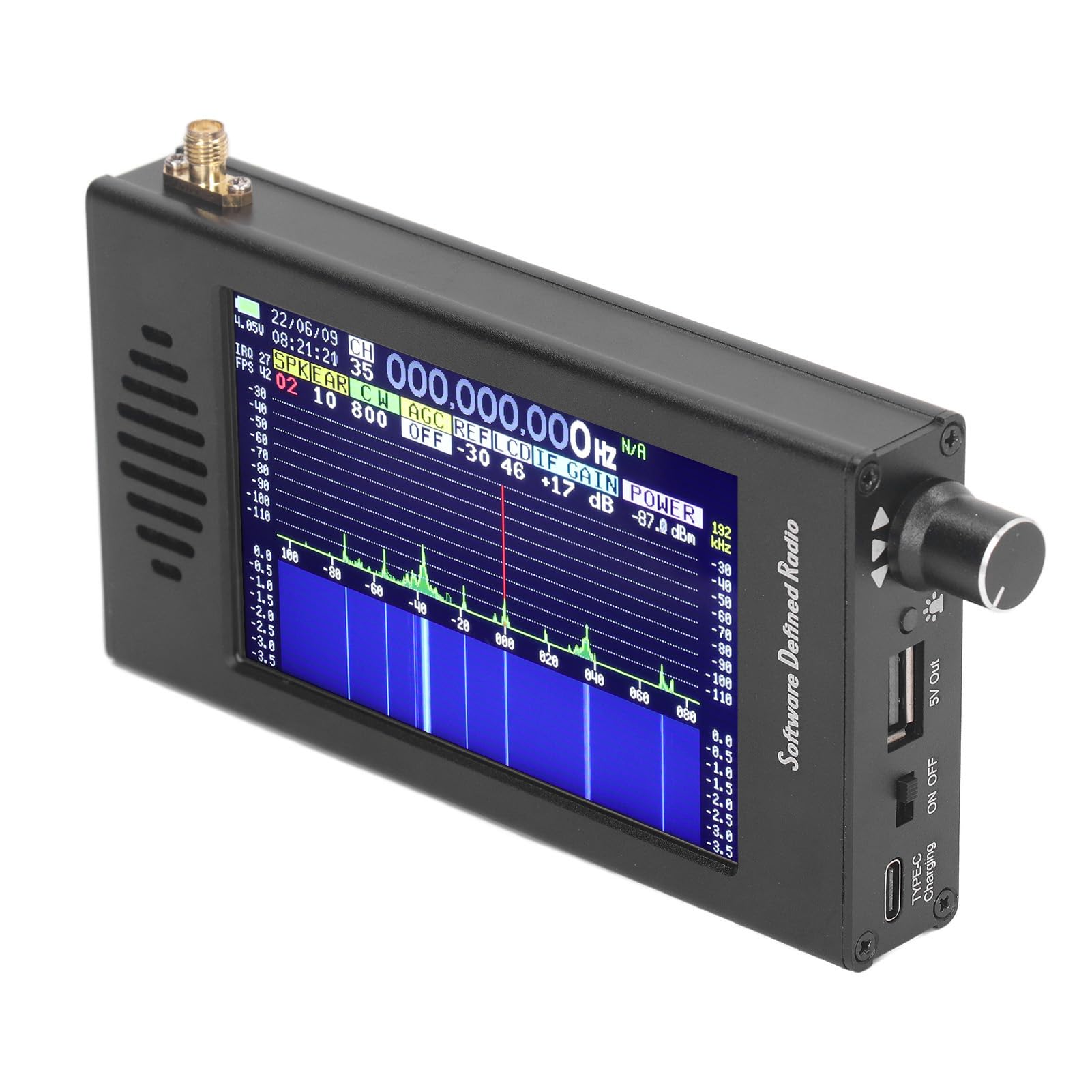

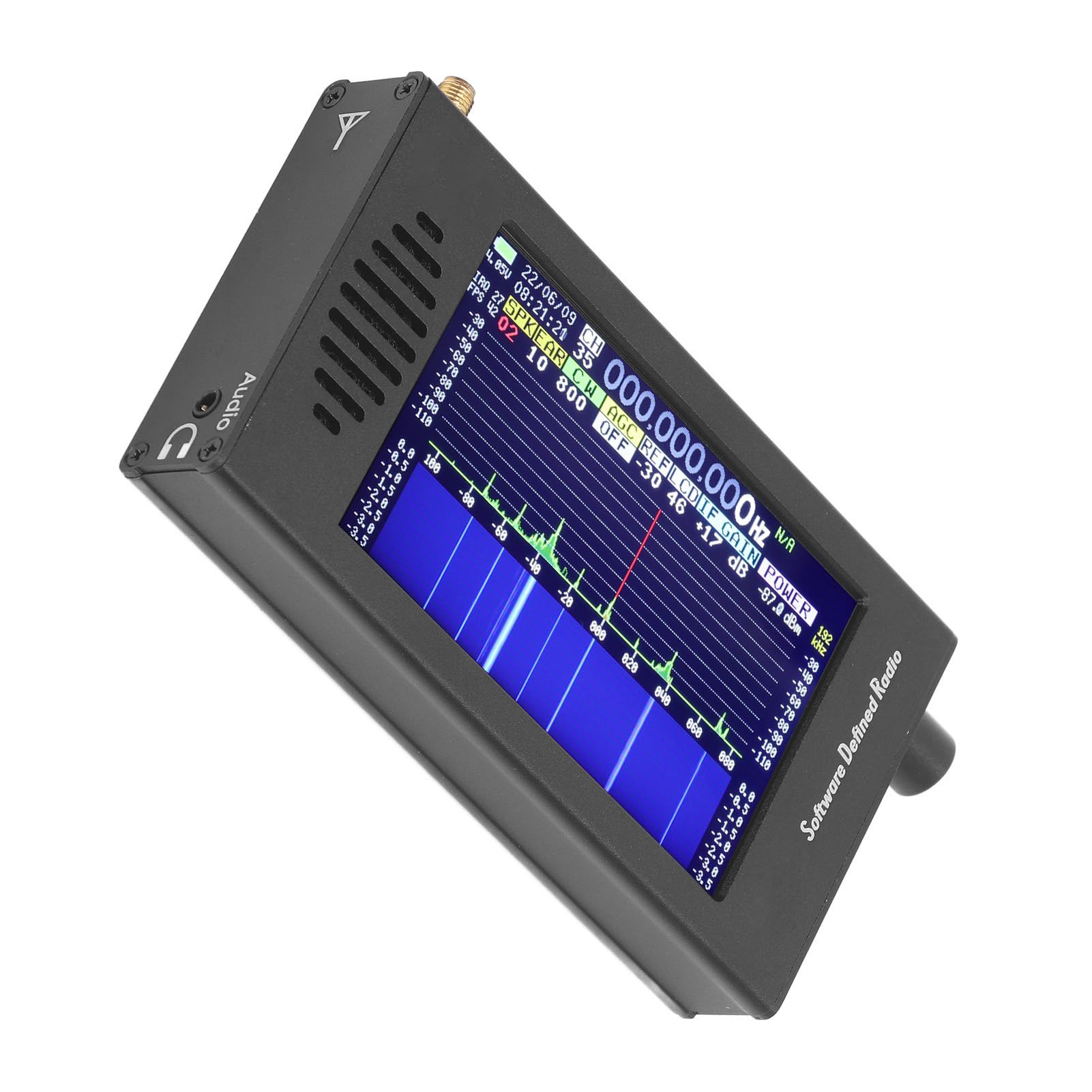

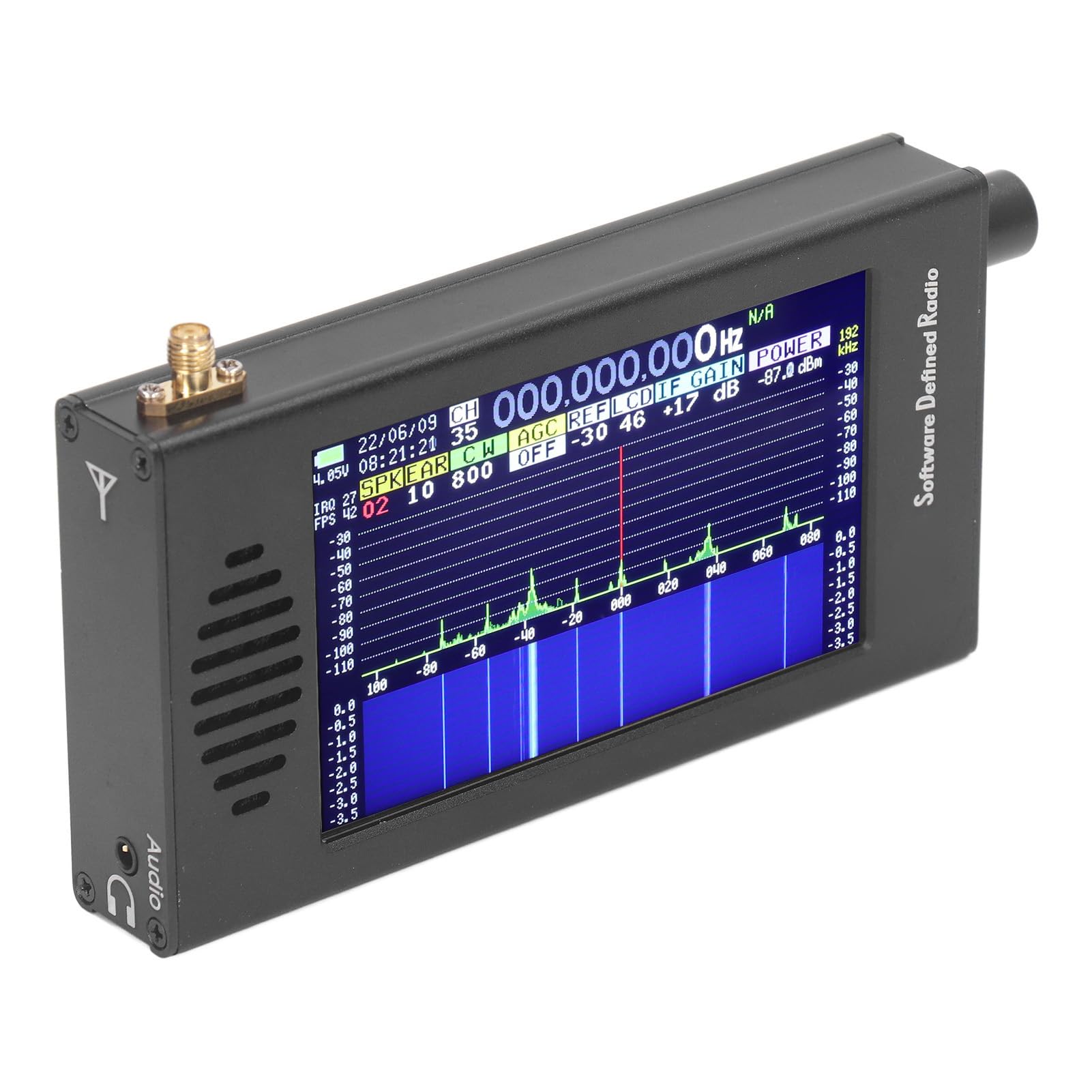

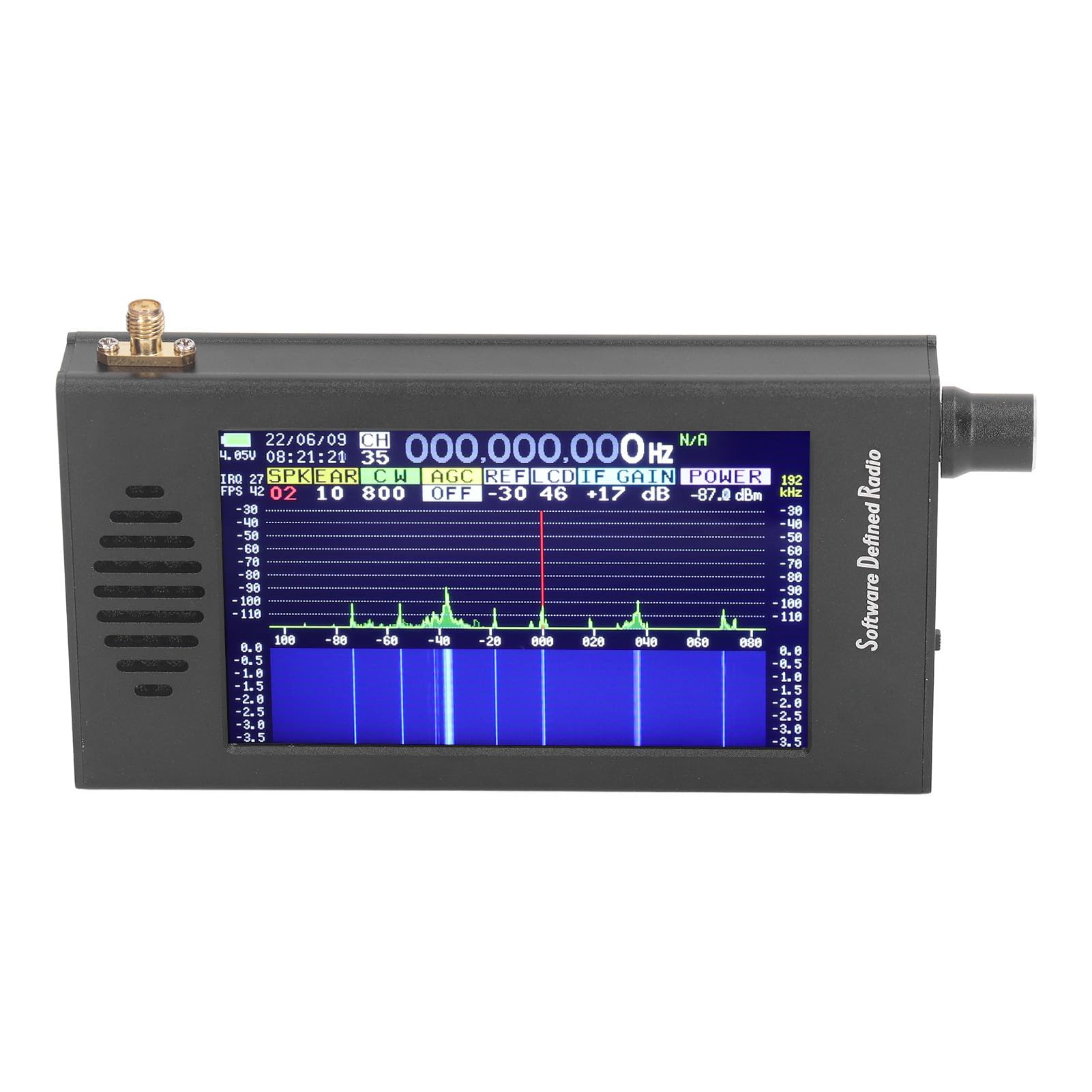

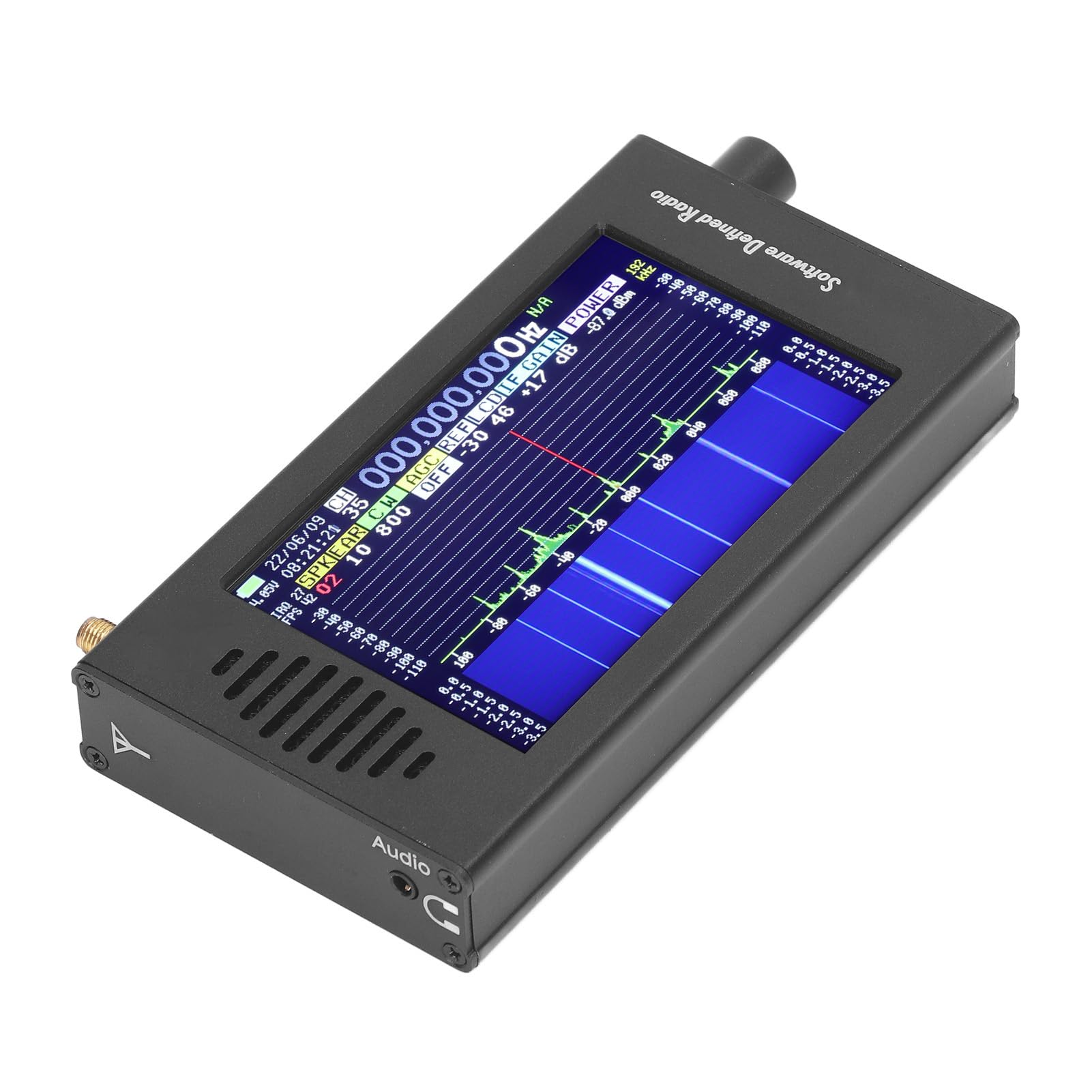

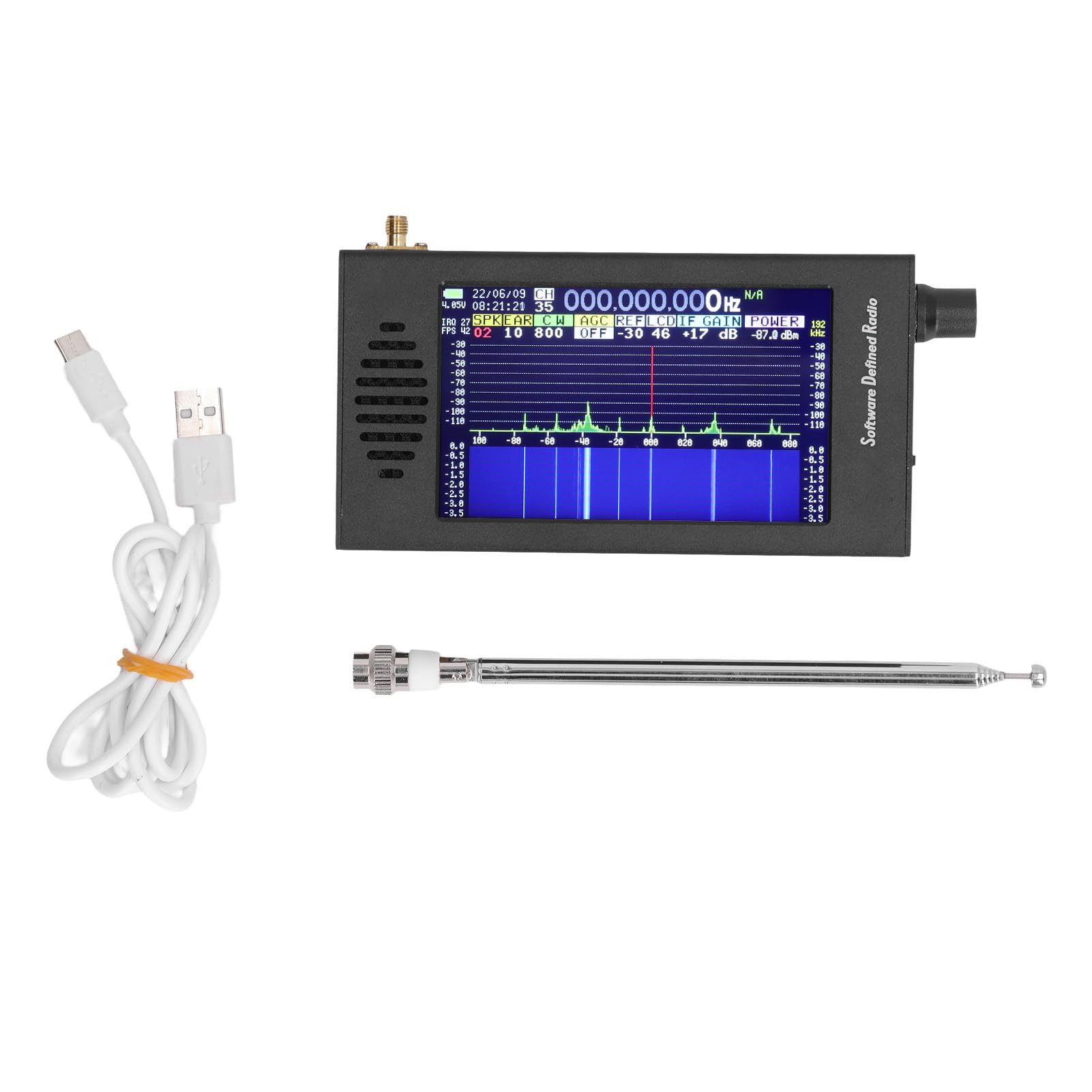

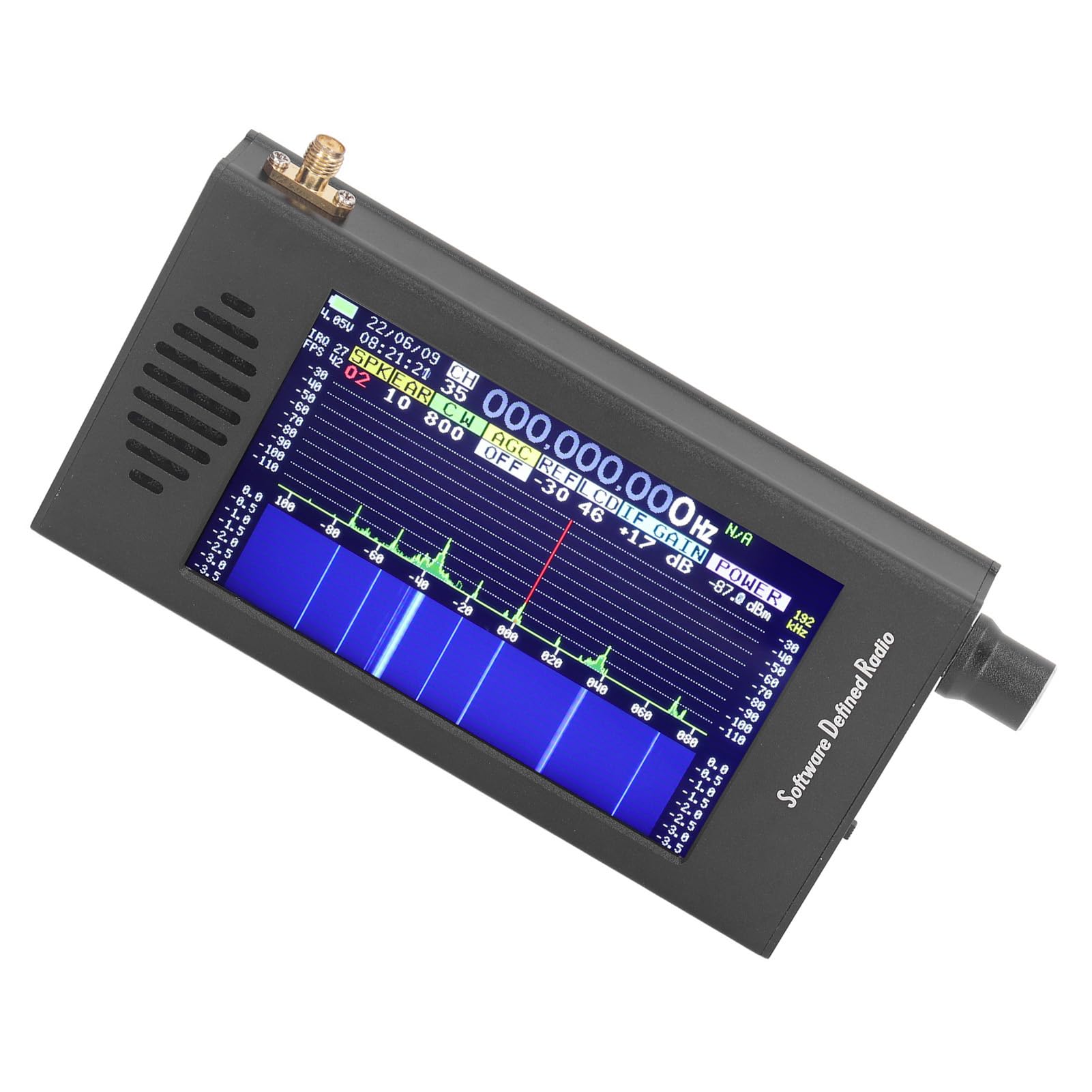

4.3 Inch Touch Screen SDR Radio Receiver - Portable FM MW SSB CW HAM Shortwave Radio with 192kHz Spectrum | Excellent Reception for Emergency, Outdoor, Travel & Hobbyist Use

4.3 Inch Touch Screen SDR Radio Receiver, FM MW SSB CW HAM Shortwave Radio with 192kHz Spectrum, Excellent Reception HIGH CAPACITY BATTERY: Built in 5000mAh 3.7V battery, can be used for about 10 to 12 hours (depending on the volume and brightness settings of the machine). EXCELLENT RECEPTION EFFECT: This full frequency band amateur radio receiver is equipped with powerful DSP chip and a long retractable antenna, with excellentquality, can receive various channels without any interference. PORTABLE RECEIVER: This DSP digital demodulation receiver, based on SDR software defined radio architecture, has 192kHz wide spectrum and waterfall display capabilities, combined with 16bit sampling could achieve CW, AM, SSB, FM, WFM demodulation functions. Specification: Item Type: DSP SDR Radio Receiver Material: Aluminum alloy Display Technology: 4.3 inch IPS 800x480 resolution DC dimming high bright LCD screen Control Method: Resistive touch screen,encoder Channel Selection: 1-99 Frequency: 100K to 149MHz, minimum step 1HZ Speaker Volume (SPK): 0-35dB, 1dB step Earphone Volume (EAR): 0-35dB, 1dB step Modulation: CW, LSB, USB, AM, WFM, STE (FM stereo), I Q AGC Settings: OFF, SLOW, MID, FAST Reference Level (REF): -99 to 99dB, 1dB step IF Gain: -12 to 67dB, 1dB step Spectral Style Settings: Green supplement, green line, blue supplement, white line Spectrum Bandwidth: RF spectrum (192kHz, 128kHz, 64kHz); Audio spectrum (64kHz) Waterfall Area Setting: Waterfall or waveform (amplitude x1 x8 x64) Five items that cannot be selected by the encoder: A. Battery level display B. Date and time settings C. Station information display: preset station name capability D. Display currentwidth E. Input (POWER) antenna port POWER display Working Mode: Single sideband CW, AM, SSB (LSB USB), WFM, stereo FM (requires headphones) Step Frequency: 1Hz 10Hz 100Hz 1kHz 10kHz 100kHz 1MHz 10MHz Spectrum Bandwidth: 192kHz, 128kHz, 64kHz, FFT real time spectrum display Antenna Interface: BNC male, impedance 50Ω, maximum input power -20dBm Reference Crystal Oscillator: TCXO 26MHz ±0.5ppm Audio Interface: Support regular 3.5mm headphones or CTIA (US standard) headphone interface Speaker Power: Maximum 3W, multimedia speaker 4Ω Charging Port: USB Type C, 5.0V 2A Current Consumption: About 250mA at 5V Battery Capacity: 5000mAh 3.7V (built in) Usage Time: About 10-12 hours, depending on machine volume and brightness settings Package List: 1 x DSP SDR Radio Receiver 1 x Antenna 1 x Data Cable 1 x Instruction Manual
