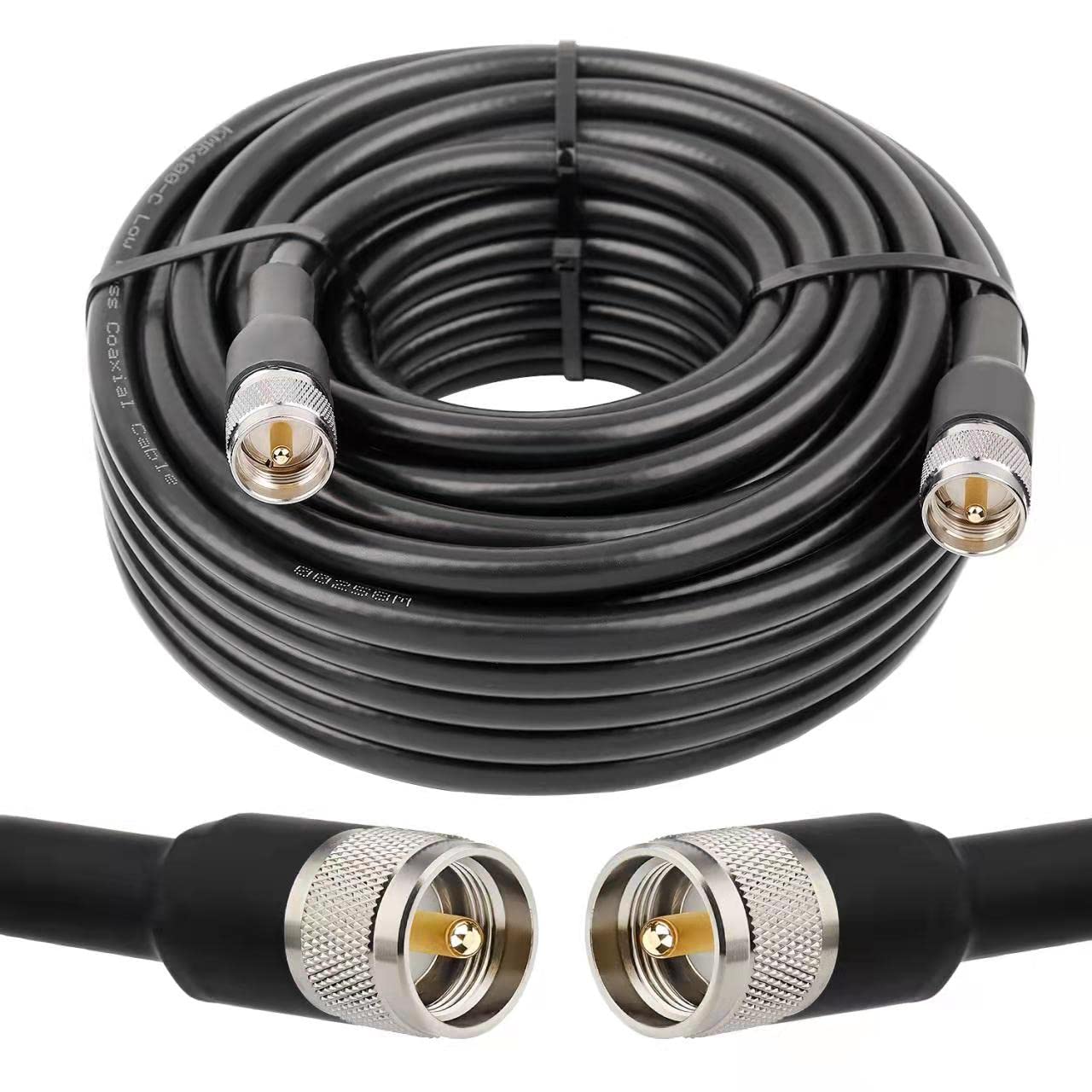

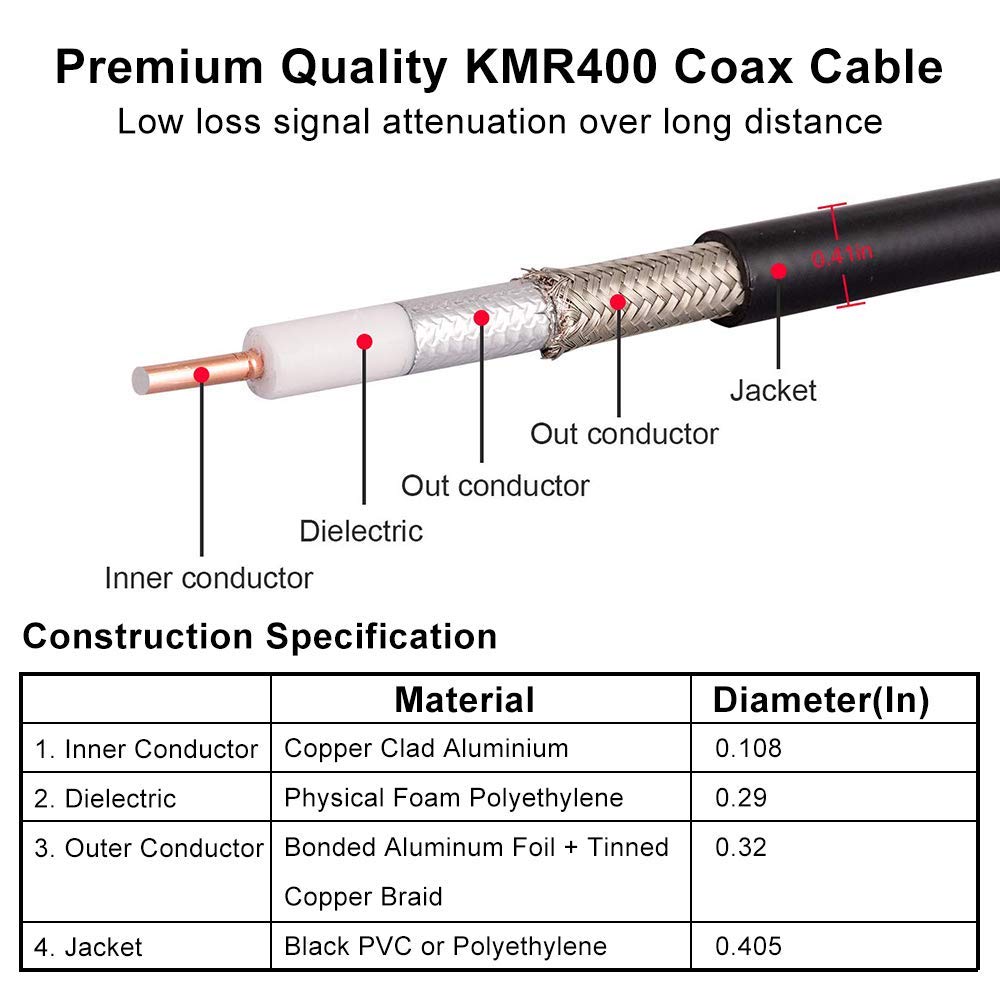

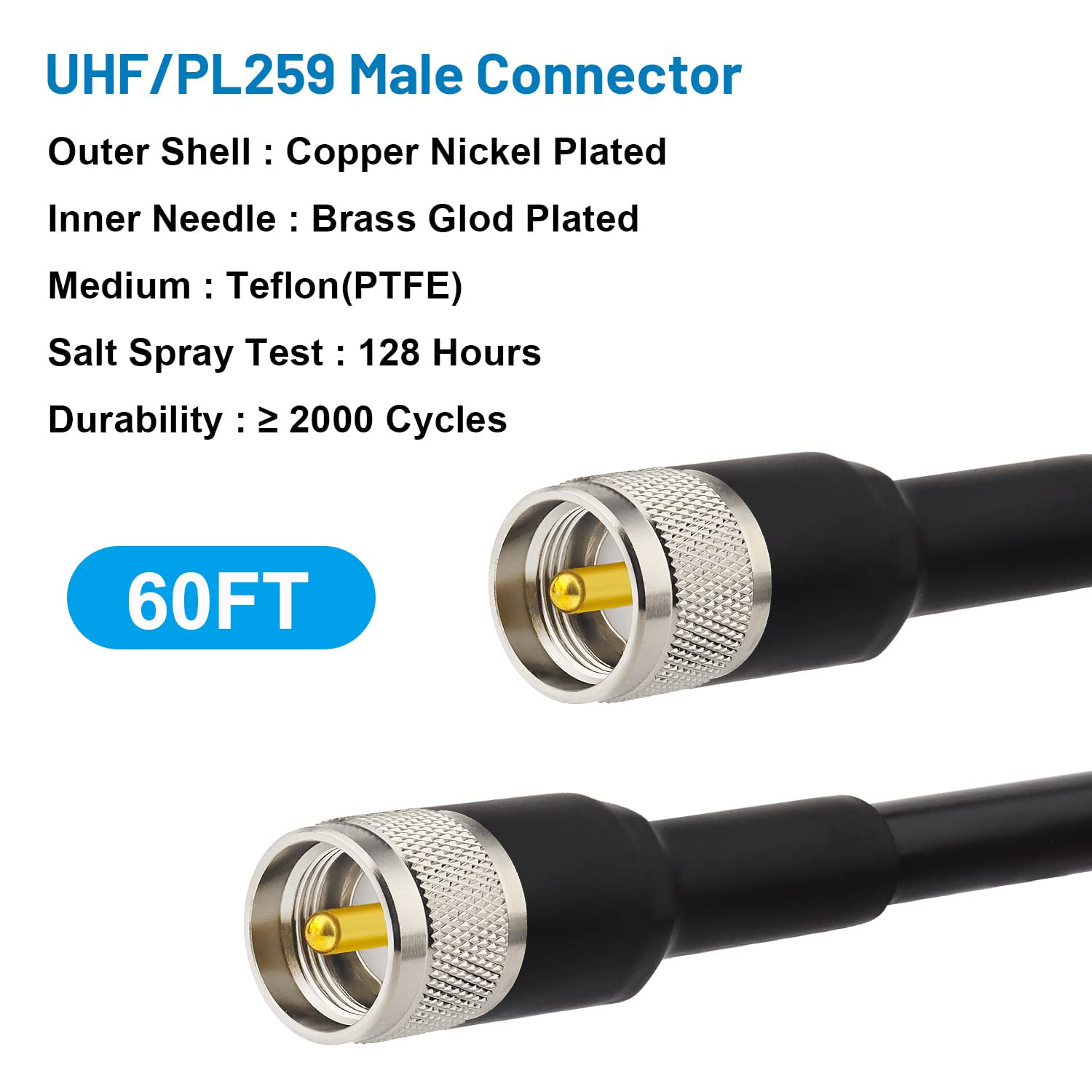

Use in Harsh Environments MOOKEERF cable jackets are made of high quality PVC and can be used in harsh environmental conditions without affecting the performance of the cable. Superiorly Constructed Connector The outer shell of the KMR400 cable's connector is made of Copper Nickel Plated, which is corrosion-resistant and resistant to oxidation, and the inner needle is Brass Gold Plated, which ensures good signal transmission. Heavy Duty Low Loss Cables High density tinned copper braided are designed to maintain 95% shield performance. It would made this UHF jumper cable is really low loss and maximum protect the signal during the transmission. KMR400 UHF PL-259 Male to PL-259 Male Coax Cable Material of UHF Connector: Outer Shell: Copper Nickel PlatedInner Needle: Brass Gold PlatedMedium: Teflon Material of KMR400 Coax Cable: Inner Conductor : Copper Clad AluminiumDielectric: Physical Foam PolyethyleneOuter Conductor: Bonded Aluminum Foil and Tinned Copper Braid.Jacket: PVC or Polyethylene Specifications Cable Type KMR400 Coaxial Cable Impedance 50 Ohm Connector Type UHF PL259 Male to UHF Male Frequency 0 - 1000MHz Min. Bend Radius(Install) 2in Maximum tensile strength 21.3Ib Operating Temp -25 to 70℃ Min. Bend Radius(mm) 51

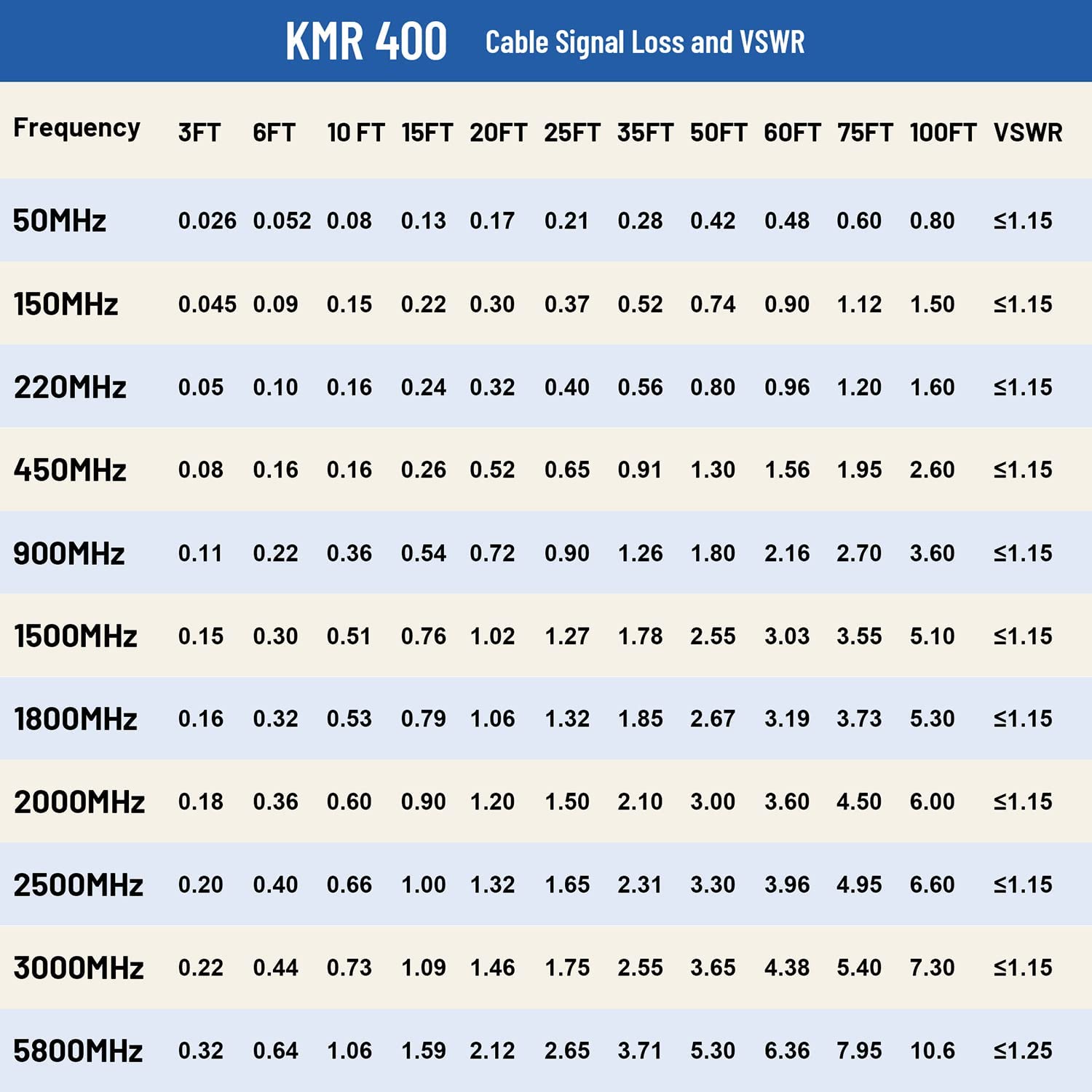

【LOW LOSS】-The loss of 60ft kmr400 pl259 coaxial cable at 450MHZ signal frequency is less than 1.76dB and the SWR ≤ 1.25. There is no need to worry about signal loss for long-distance high-frequency use.
【Well Built Structure】- The inner conductor of this pl259 cable is made of copper clad aluminium, and the outer conductor is made of Aluminum foil and tinned copper braid which could maximum protect the signal over large distance.It could be better in resist oxidation.
【Durable】- The jacket of this cb cable is made of high-quality PVC,which is waterproof and durable.The shell of the uhf connector is made of high-quality copper nickel plated,which could be better in resist oxidation and corrosion. The cable could work in outdoor environments.

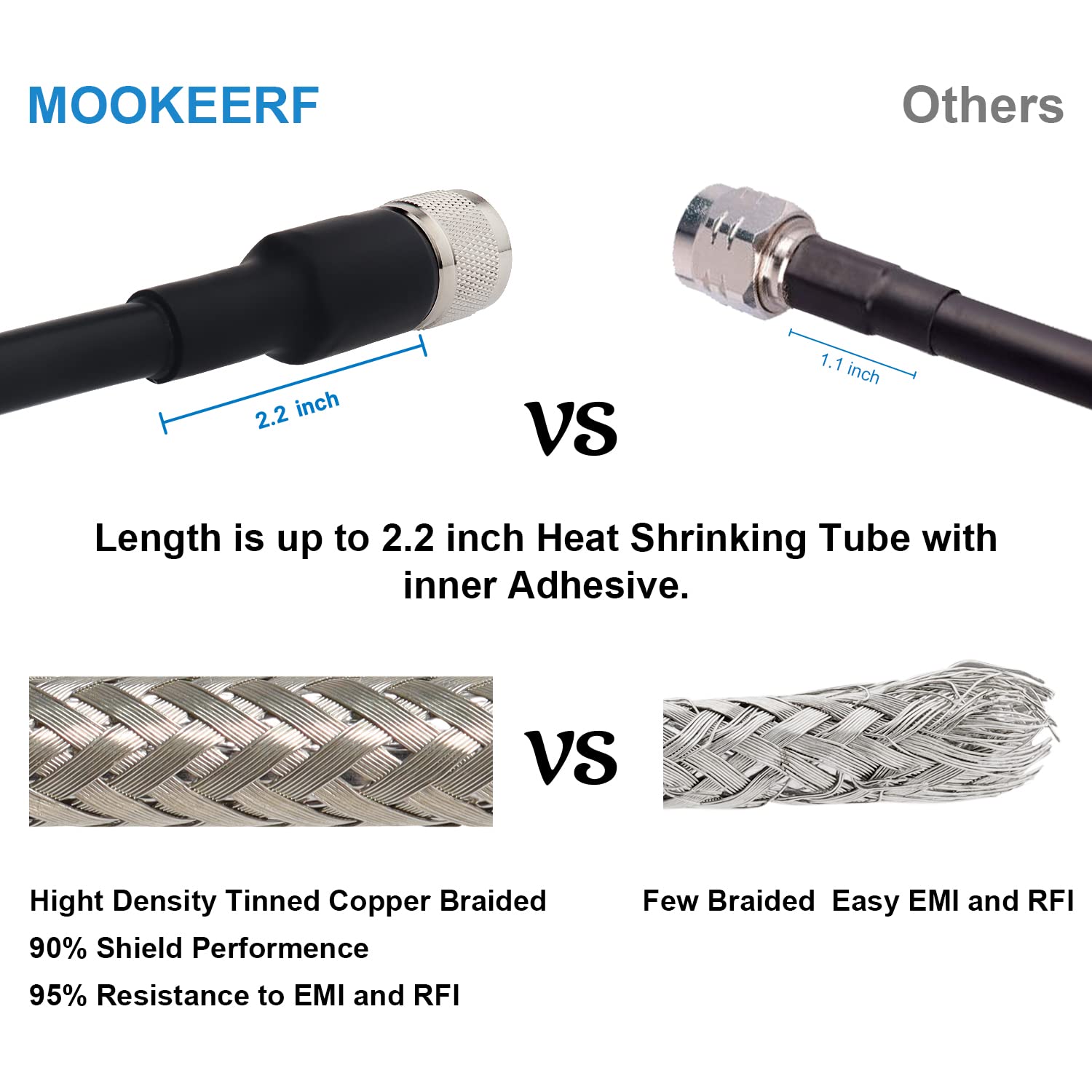

【Prevent Coming Off】-Connection between UHF male connector and kmr400 coaxial cable end is equipped with a 2.2" heat shrink tube and built with adhesive, which is longer than ordinary cables. It could support professionally connection between cable and adapters and prevent connector to pull out.
【Applications】- This kmr400 pl259 male to male coax cable could be used for CB ham radio, HF amateur radio, marine boat VHF radio, antenna, swr meter, surge protector, Walkie Talkies,etc.
